Welch MXPC 303 Z Laboratory Vacuum System 33L/min 5mbar
Welch MXPC 303 Z Laboratory Vacuum System 33L/min 5mbar

Welch MXPC 303 Z Laboratory Vacuum System 33L/min 5mbar

Stock Code: 4031459
Manufacturer Part No: PUM1210
Contact us now for lead time
Click Add to Quote for price and delivery
Quantity: - +

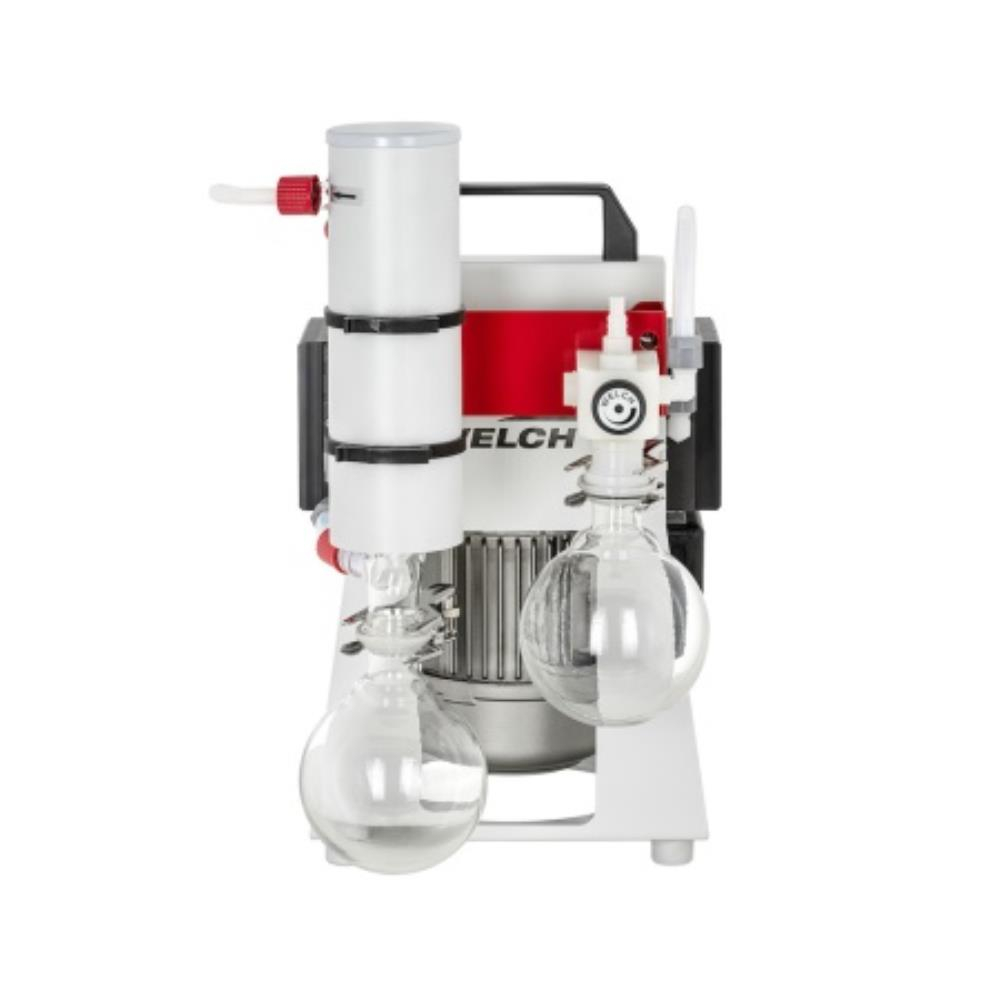

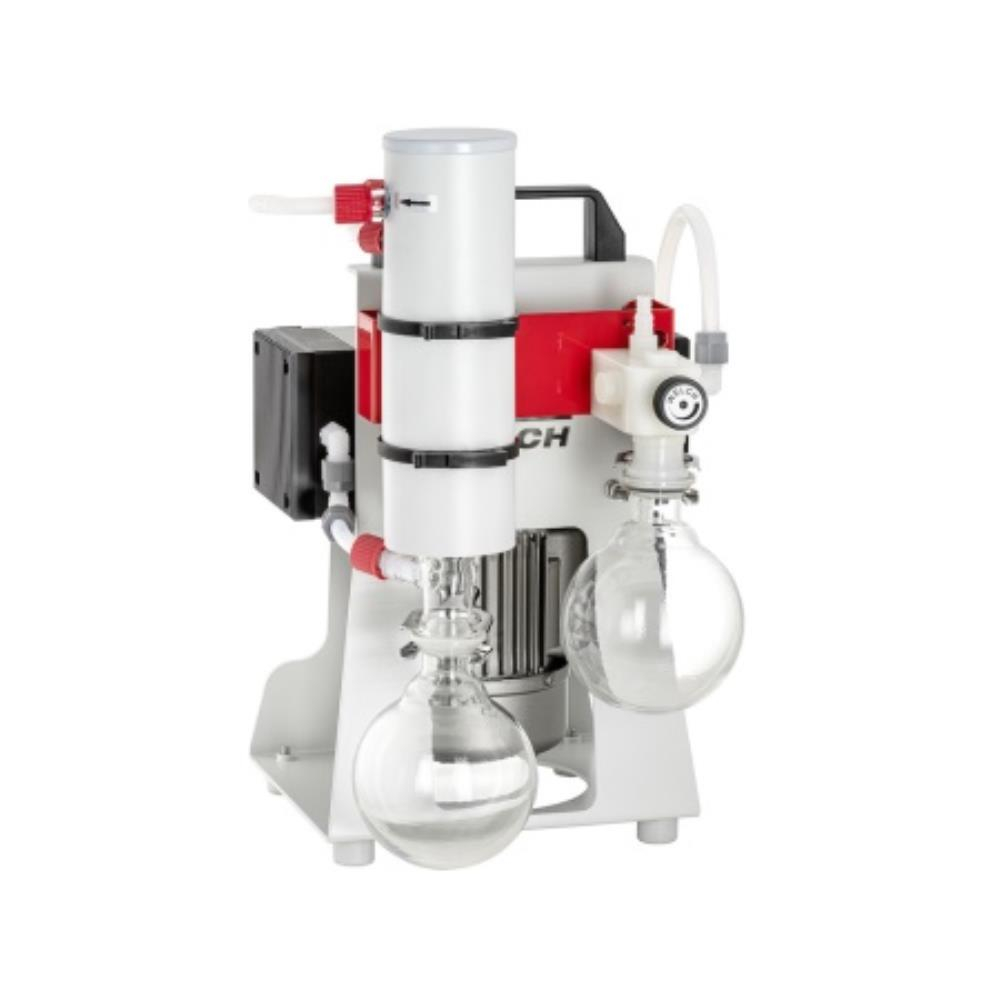

The Vacuum Pump System MXPC Series is especially suitable for applications for distillation and evaporation of solvents. It finds its use in laboratories or industry, specifically for pumping aggressive gases and vapours. It consists of a dry-running, two-stage chemical resistant diaphragm pump with gas ballast valve, the suction side condensate separator (round bottom flask 500mL) for collecting liquids and particles. An emission condenser is provided on the pressure side for solvent recovery, as an isolated intensive condenser with connections for cooling water supply and return, as well as a 500mL round piston and safety valve.

Weight, kg14.7
Dims, w x d x h, mm250 x 350 x 440
