Welch MXPC Laboratory Vacuum System

Welch MXPC Laboratory Vacuum System

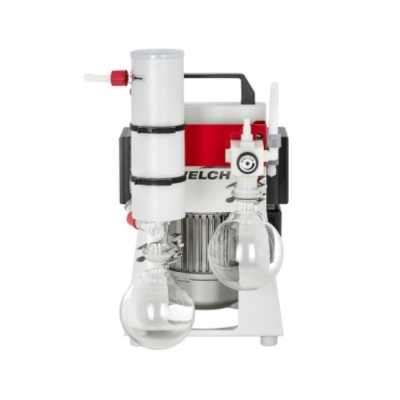

The Vacuum Pump System MXPC Series is especially suitable for applications for distillation and evaporation of solvents. It finds its use in laboratories or industry, specifically for pumping aggressive gases and vapours. It consists of a dry-running, two-stage chemical resistant diaphragm pump with gas ballast valve, the suction side condensate separator (round bottom flask 500mL) for collecting liquids and particles. An emission condenser is provided on the pressure side for solvent recovery, as an isolated intensive condenser with connections for cooling water supply and return, as well as a 500mL round piston and safety valve.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Weight, kg Dims, w x d x h, mm Price Quantity
4031459 Welch MXPC 303 Z Laboratory Vacuum System 33L/min 5mbar 14.7 250 x 350 x 440
Click Add to Quote for price and delivery
-
+
4031460 Welch MXPC 603 T Laboratory Vacuum System 65L/min 2mbar 25 250 x 350 x 500
Click Add to Quote for price and delivery
-
+
