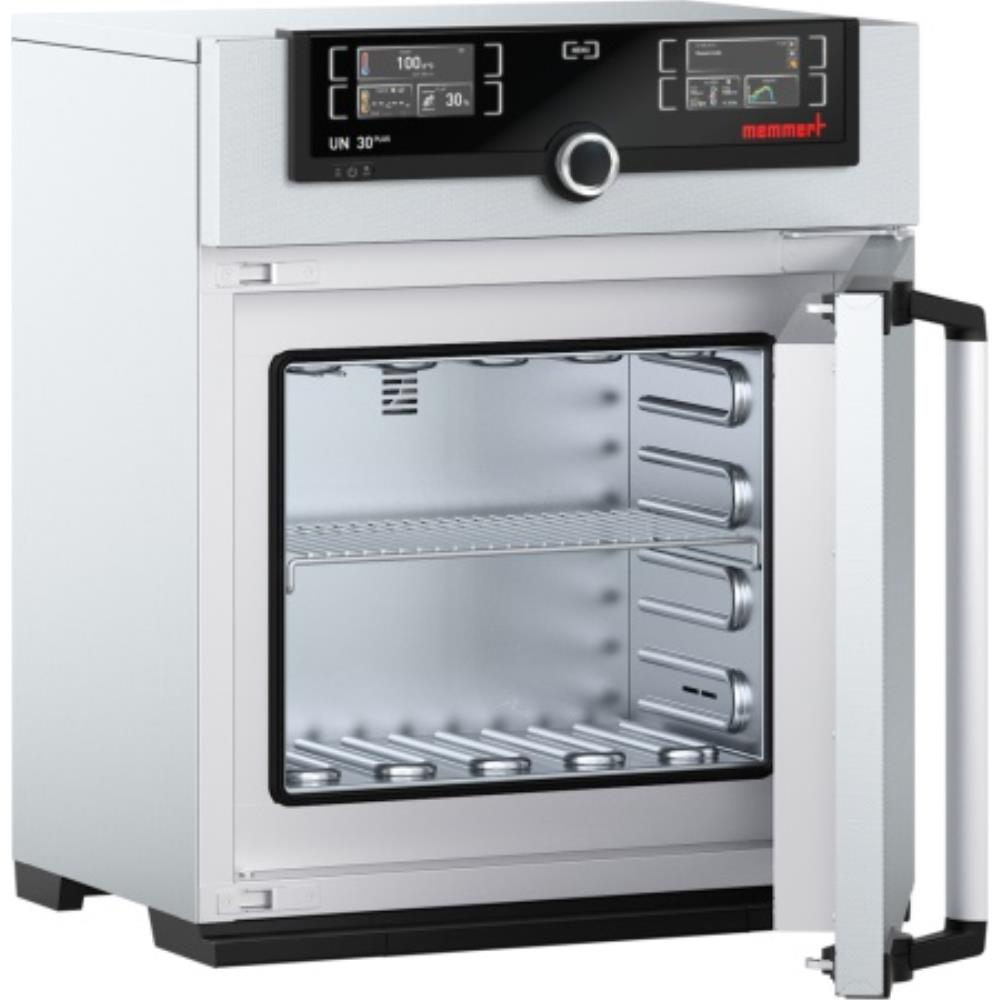

Memmert Universal Oven UN plus Natural Convection TwinDISPLAY

Memmert Universal Oven UN plus Natural Convection TwinDISPLAY

This all-round genius among the heating ovens covers a multitude of applications, ideally at temperatures above +50 °C. Without compromises! Thanks to two model variants and nine sizes, optionally with natural or forced convection, industry, science and research institutes will find a heating and drying oven which combines top precision and safety with optimal operating comfort.

  • Voltage: 230 V, 50/60 Hz
  • Voltage: 400 V, 50/60 Hz for sizes 450-1060
  • Setting temperature range +20 °C to +300 °C
  • Structured stainless steel housing, scratch-resistant, robust and durable; rear of zinc-plated steel
  • The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points – optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber
  • Internal data logger with storage capacity of at least 10 years
  • German, English, French, Spanish, Polish, Czech, Hungarian language settings available on the ControlCOCKPIT
  • Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Adjustment of 3 calibration values for temperature and additional appliance specific parameters directly at the ControlCOCKPIT
  • Works calibration certificate at +160 °C
  • Warranty is 3 years on parts, 1 year on labour

SingleDISPLAY:

· ControlCOCKPIT with one high-resolution TFT colour touch display

· Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, programme time, time zones, daylight-saving time

· One temperature sensor Pt100 DIN class A in a 4-wire circuit

· AtmoCONTROL software for reading out, managing and organizing the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand)

· Ethernet interface for reading out protocol log and for online logging

· Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12880

TwinDISPLAY:

· ControlCOCKPIT with two high-resolution TFT colour touchdisplays

· Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time

· Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error

· HeatBALANCE function for application specific adjustment of heat output distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 %

· AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port

· Intuitive programming and archiving of ramps and program sequences

· Synchronous visualisation of the created program sequence during programming

· Application-specific repeat functions (loops) can be inserted within a temperature control program in any place

· Simple creation of repeating weekly programs

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Display Price Quantity
2777025 Memmert Universal Oven UN30plus Natural Convection TwinDISPLAY with 1 Grid 32L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2777026 Memmert Universal Oven UN55plus Natural Convection TwinDISPLAY with 1 Grid 53L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2777027 Memmert Universal Oven UN75plus Natural Convection TwinDISPLAY with 2 Grids 74L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2777028 Memmert Universal Oven UN110plus Natural Convection TwinDISPLAY with 2 Grids 108L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2777029 Memmert Universal Oven UN260plus Natural Convection TwinDISPLAY with 2 Grids 256L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2777030 Memmert Universal Oven UN450plus Natural Convection TwinDISPLAY with 2 Grids 449L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2777031 Memmert Universal Oven UN750plus Natural Convection TwinDISPLAY with 2 Grids 749L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
