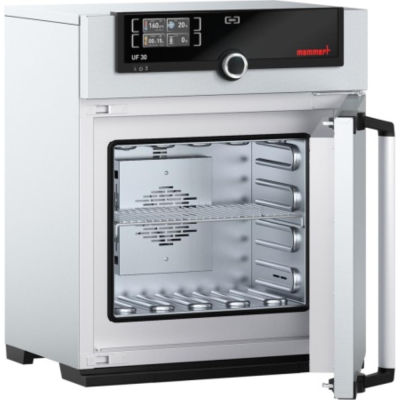

Memmert Universal Oven UF Series Forced Air Circulation SingleDISPLAY

Memmert Universal Oven UF Series Forced Air Circulation SingleDISPLAY

This all-round genius among the heating ovens covers a multitude of applications, ideally at temperatures above +50 °C. Without compromises! Thanks to two model variants and nine sizes, optionally with natural or forced convection, industry, science and research institutes will find a heating and drying oven which combines top precision and safety with optimal operating comfort.

  • Voltage: 230 V, 50/60 Hz
  • Voltage: 400 V, 50/60 Hz for sizes 450-1060
  • Setting temperature range +20 °C to +300 °C
  • Structured stainless steel housing, scratch-resistant, robust and durable; rear of zinc-plated steel
  • The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points – optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber
  • Internal data logger with storage capacity of at least 10 years
  • German, English, French, Spanish, Polish, Czech, Hungarian language settings available on the ControlCOCKPIT
  • Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Adjustment of 3 calibration values for temperature and additional appliance specific parameters directly at the ControlCOCKPIT
  • Works calibration certificate at +160 °C
  • Warranty is 3 years on parts, 1 year on labour

SingleDISPLAY:

· ControlCOCKPIT with one high-resolution TFT colour touch display

· Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, programme time, time zones, daylight-saving time

· One temperature sensor Pt100 DIN class A in a 4-wire circuit

· AtmoCONTROL software for reading out, managing and organizing the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand)

· Ethernet interface for reading out protocol log and for online logging

· Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12880

TwinDISPLAY:

· ControlCOCKPIT with two high-resolution TFT colour touchdisplays

· Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time

· Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error

· HeatBALANCE function for application specific adjustment of heat output distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 %

· AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port

· Intuitive programming and archiving of ramps and program sequences

· Synchronous visualisation of the created program sequence during programming

· Application-specific repeat functions (loops) can be inserted within a temperature control program in any place

· Simple creation of repeating weekly programs

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Display Price Quantity
2777016 Memmert Universal Oven UF30 Forced Air Circulation SingleDISPLAY with 1 Grid 32L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777017 Memmert Universal Oven UF55 Forced Air Circulation SingleDISPLAY with 1 Grid 53L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777018 Memmert Universal Oven UF75 Forced Air Circulation SingleDISPLAY with 2 Grids 74L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777019 Memmert Universal Oven UF110 Forced Air Circulation SingleDISPLAY with 2 Grids 108L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777020 Memmert Universal Oven UF160 forced air circulation SingleDISPLAY with 2 Grids 161L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777021 Memmert Universal Oven UF260 Forced Air Circulation SingleDISPLAY with 2 Grids 256L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777022 Memmert Universal Oven UF450 Forced Air Circulation SingleDISPLAY with 2 Grids 449L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777023 Memmert Universal Oven UF750 Forced Air Circulation SingleDISPLAY with 2 Grids 749L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
2777024 Memmert Universal Oven UF1060 Forced Air Circulation SingleDISPLAY with 1 Grid 1060L SingleDISPLAY
Click Add to Quote for price and delivery
-
+
