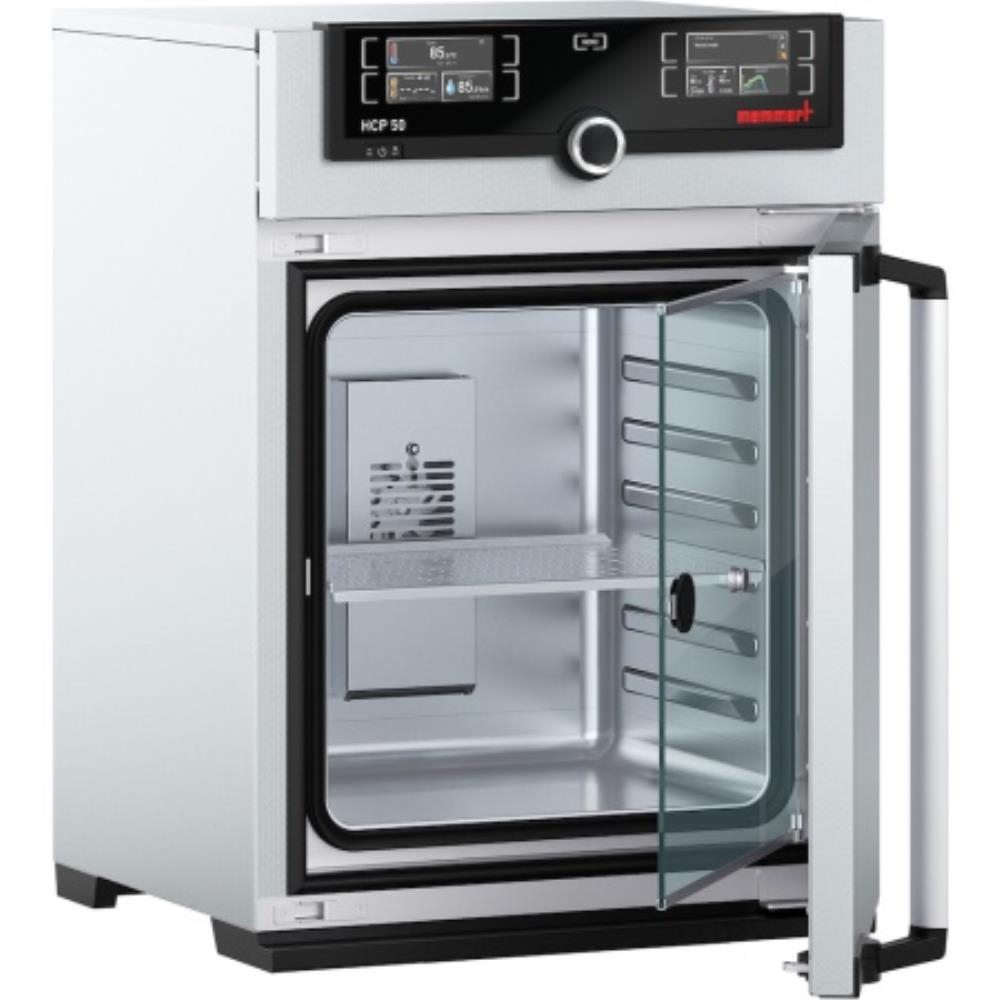

Memmert HCP Humidity Chamber

Memmert HCP Humidity Chamber

Applications for humidity chambers range from construction physics to corrosion testing and down to biological research. Ramp programming for temperature and humidity, active humidity control between 20 and 95 % rh as well as exact temperature control of up to +90 °C ensure a controlled, physiologically ideal environment for the simulation of real conditions.

ControlCOCKPIT: TwinDISPLAY with two high-resolution TFT colour touchdisplays

Setting temperature range 18 °C to 90 °C

Setting range active humidity control 20 to 95 % rh

Capacitive humidity sensor for measuring and displaying the relative humidity

Fully insolated stainless steel door and heated inner glass door

All-round heating on 6 sides

Ethernet interface for reading out protocol log

USB port on ControlCOCKPIT for use of USB stick

Multiple overtemperature protection/undertemperature alarm

Works calibration certificate at 60 °C / 75 % rh

Warranty is 3 years on parts, 1 year on Labour

TwinDISPLAY:

ControlCOCKPIT with two high-resolution TFT colour touchdisplays

Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time

Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error

HeatBALANCE function for application specific adjustment of heat output distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 %

AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port

Intuitive programming and archiving of ramps and program sequences

Synchronous visualisation of the created program sequence during programming

Application-specific repeat functions (loops) can be inserted within a temperature control program in any place

Simple creation of repeating weekly programs

ControlCOCKPIT with USB port for uploading programs, reading out protocol logs, activating the User-ID function

Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)

Ethernet interface for reading out protocol log, uploading programs and for online logging

Multiple over temperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.1 or 2) and mechanical temperature limiter TB (protection class 1) acc. to DIN 12880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual

MIN / MAX values for over/under temperature alarm

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Weight, kg Price Quantity
2776918 Memmert HCP50 Humidity Chamber with 1 Stainless Steel Shelf 56L 55
Click Add to Quote for price and delivery
-
+
2776919 Memmert HCP105 Humidity Chamber with 2 Stainless Steel Shelves 107L 75
Click Add to Quote for price and delivery
-
+
2776920 Memmert HCP150 Humidity Chamber with 2 Stainless Steel Shelves 156L 90
Click Add to Quote for price and delivery
-
+
2776921 Memmert HCP240 Humidity Chamber with 2 Stainless Steel Shelves 241L 110
Click Add to Quote for price and delivery
-
+
