Branson SFX 250 Sonifier kit

Branson SFX 250 Sonifier kit

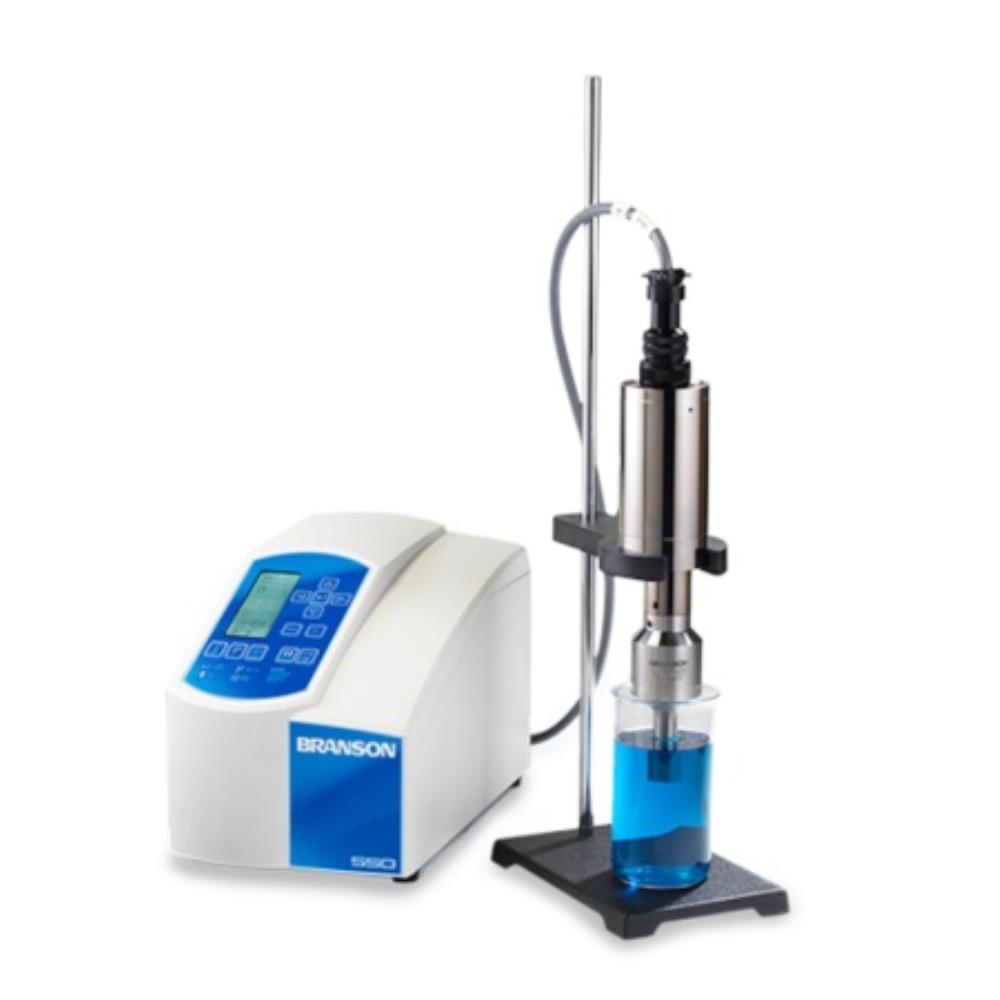

SFX digital Sonifiers bring the industry's advanced capabilities to your laboratory. Higher power levels. Precise energy and temperature control. Simple operation. There's even a handheld converter for low-volume applications. Power, visibility and control. The most powerful Sonifier, the SFX550 easily handles high-volume applications with up to 550 watts of output power at 20 kHz. The SFX550 can process larger, viscous samples, but also provides precise control over energy output and other parameters to accommodate experiments of all sizes. All SFX Series Sonifiers provide exclusive Branson features including advanced energy mode and true temperature control. True temperature control allows the user to specify a temperature range for the sample; the Sonifier automatically adjusts the ultrasonic pulse length to prevent the sample from overheating (requires optional temperature probe).

Advanced control modes: energy mode and energy pulsing are now available in addition to the traditional timed experiment

In-process feedback monitoring: Check on the progress of your experiment and view key variables such as power level, energy usage, sample temperature and more

Continuous or pulsed ultrasonics

Max temperature limit

Experiment progress indicator

Micro-tip mode, which limits amplitude to 70%

550 watts output power

Processing up to 1000mL

Advanced energy control mode delivers precise energy input in continuous or pulse modes

True temperature control manages sample temperature within user-specified limits (requires separate temperature probe)

Control modes include time, temperature, and energy

Continuous or pulsed ultrasonics

High-efficiency, stand-mountable converter requires no internal cooling

Scrollable, multifunction screen with pushbuttons

In-process feedback displays experimental progress together with key variables such as power level, energy usage, and sample temperature

Microtip mode limits amplitude to 70% to extend tool life

Amplitude control range from 10 to 100%

Powerful 20 kHz ultrasonics

Up to 20 stored programs

Programmable parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
1445859 Branson SFX 550 Sonifier kit - 550 W 20 kHz Includes Model 102-C Converter. Cable. Disruptor Horn -
Click Add to Quote for price and delivery
-
+
1445860 Branson SFX 550 Sonifier kit - 550 W 20 kHz Includes Model 102-C Converter. Cable. High Gain Horn -
Click Add to Quote for price and delivery
-
+
