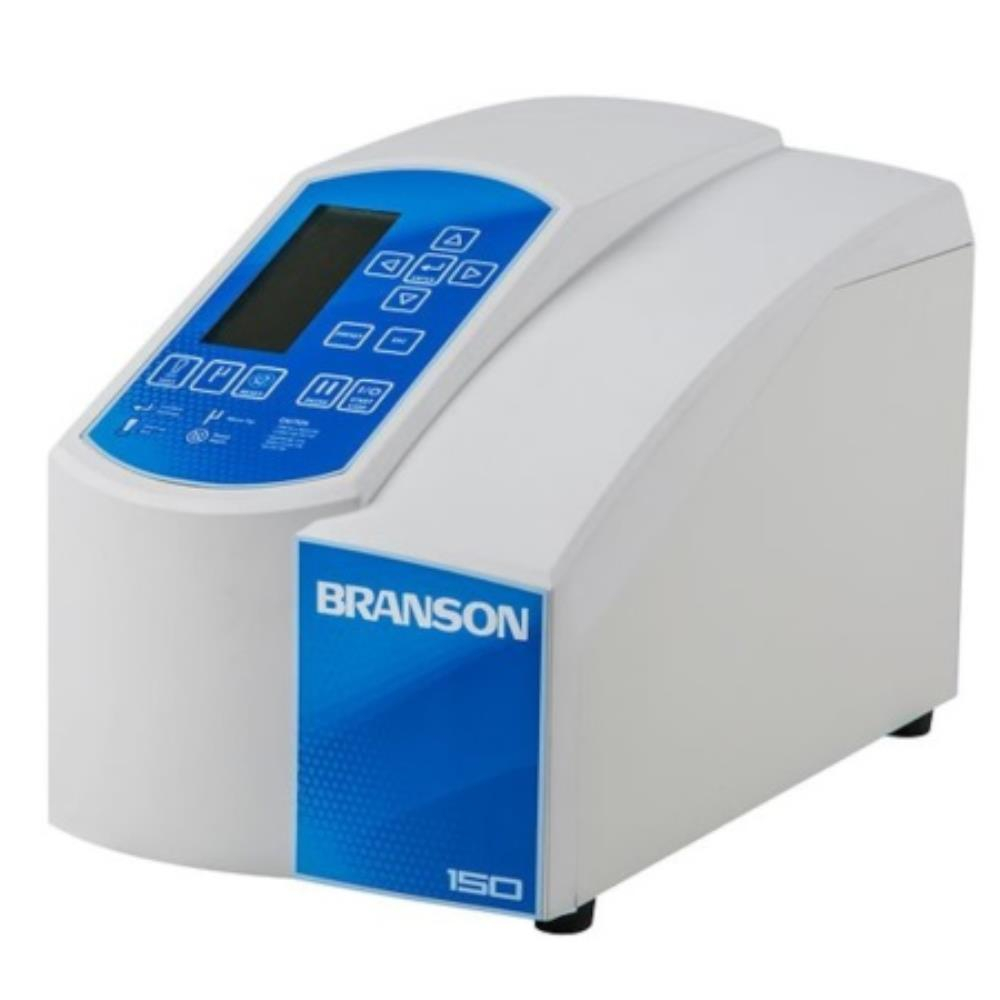

Branson SFX 150 Sonifier Kit

Branson SFX 150 Sonifier Kit

The Sonifier® SFX150 is designed to bring the industry's most advanced sample-processing capabilities to your laboratory. Geared toward low-volume samples ranging from 0.2 to 150mL, the Sonifier® SFX150 delivers up to 150 watts of power. And at 40kHz, it's quiet enough to operate on a lab bench without a sound enclosure. Because it is available with either a conventional or a handheld converter, you can use the SFX150 in a stack configuration to process longer-duration samples, or process samples quickly by hand using the comfortable, ergonomically-designed handheld converter.

In energy mode, the power supply manages the processing cycle to deliver a precise, user-determined input of ultrasonic energy, either continuously or in individual pulses, and automatically compensates for any variability, extending or shortening the cycle as needed to deliver the precise energy output

Monitors ongoing processes on a scrollable, digital screen, providing continuous updates of key variables including power level, energy usage, sample temperature, and experiment progress

Create and store up to 20 sample-processing programs for assured repeatability and precision on a greater scale

Program parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage

40kHz ultrasonics for quiet tabletop operation

Sample sizes from 0.2 to 150mL

High-efficiency, handheld and stand-mountable converters require no internal cooling

Scrollable, multifunction screen with pushbuttons

Continuous or pulsed ultrasonics

Amplitude control range from 10 to 100%

Microtip mode limits amplitude to 70% to extend tool life

Control modes include time, temperature, and energy

True temperature control manages sample temperature within user-specified limits (requires separate temperature probe)

In-process feedback displays experiment progress together with key variables such as power level, energy usage, and elapsed time

Advanced energy control mode delivers precise energy input in continuous or pulse modes

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
1445856 Branson SFX 150 Sonifier Kit - 150W Includes 40kHz Traditional Converter and 3.2mm Micro-Tip (Supp
Click Add to Quote for price and delivery
-
+
1445857 Branson SFX 150 Sonifier Kit - 150W Includes 40kHz Handheld Converter and 3.2mm Micro-Tip
Click Add to Quote for price and delivery
-
+
