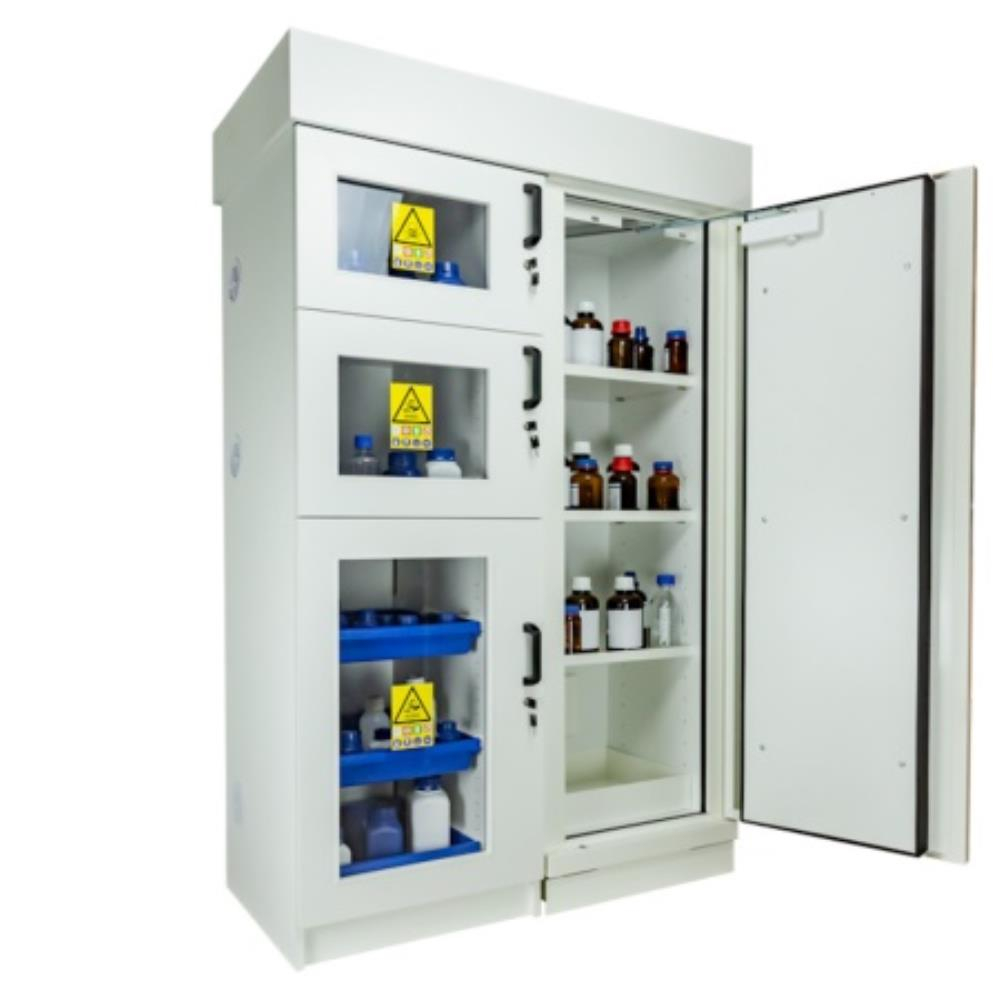

Tall cabinet 4 compartments Type 60 with PVC corrosion-proof cabinet

Tall cabinet 4 compartments Type 60 with PVC corrosion-proof cabinet

Stock Code: 1811809
Manufacturer Part No: SAF2060
Order Now for 28 day delivery
Click Add to Quote for price and delivery
Quantity: - +

These are all-in-one cabinets allowing storing all of your chemicals in only one cabinet, with four separate compartments for flammables, acids, bases and toxics. The flammable compartment is available with 60 and 90 minute fire resistance, tested and approved according to EN 14470-1 (04/2044) norm and FM 6050 norm, to allow storing your flammable products safely, and delaying the spread of the eventual fire in the cabinet, while waiting for rescue intervention. The acid, bases and toxics compartments are available in white cellular PVC or melamine.


Large warning labels in compliance with ISO 3864, 92/58/CEE European directive, EN 14470-1 (04/2004) and NF X08.003 norm


Allows segregated storage per product families


Fire resistance tested and approved by an independent European laboratory


Outside dims, h x w x d: 2205 x 1270 x 615mm


Flammables compartment:


Double wall construction: outer housing made of sheet steel; inner body made of H.P.L (High pressure laminated) coated sheet


Thermal insulation panel between the walls avoiding thermal bridges


White epoxy paint RAL 9010


Standardised flammable labelling


Fixing point for earthing


Ventilation holes with Ø 100 mm ventilation outlet for possible connection


Ventilation ducts with thermo-fusible system to isolate the interior of the enclosure in the event of fire


Thermo-expanding door seals


Door with automatic 2 points locking and automatic locking by self-locking pin


Key lock


Door holding system in open position with automatic closing preset at 50°C


3 height-adjustable retention shelves


Removable containment sump at the bottom


Inside dims, h x w x d: 1620 x 490 x 410mm


Storage capacity: 105L


Containment capacity: 17L


Acids compartment:


Construction in white cellular PVC or melamine


Standardised acids labeling


Top and bottom ventilation holes


Hinged glass door with key lock


2 shelves/containment sumps mounted on sliding rails with stopper


1 shelf/containment sump


Inside dims, h x w x d: 870 x 467 x 540mm


Storage capacity: 55L


Containment capacity: 51L


Bases/toxics compartments:


White cellular PVC or melamine construction.


Standardised bases or toxic labeling


Top and bottom ventilation holes


Hinged glass door with key lock


1 shelf/containment sump


Inside dims, h x w x d: 420 x 467 x 540


Storage capacity: 25L


Containment capacity: 17L

ManufacturerECOSAFE
