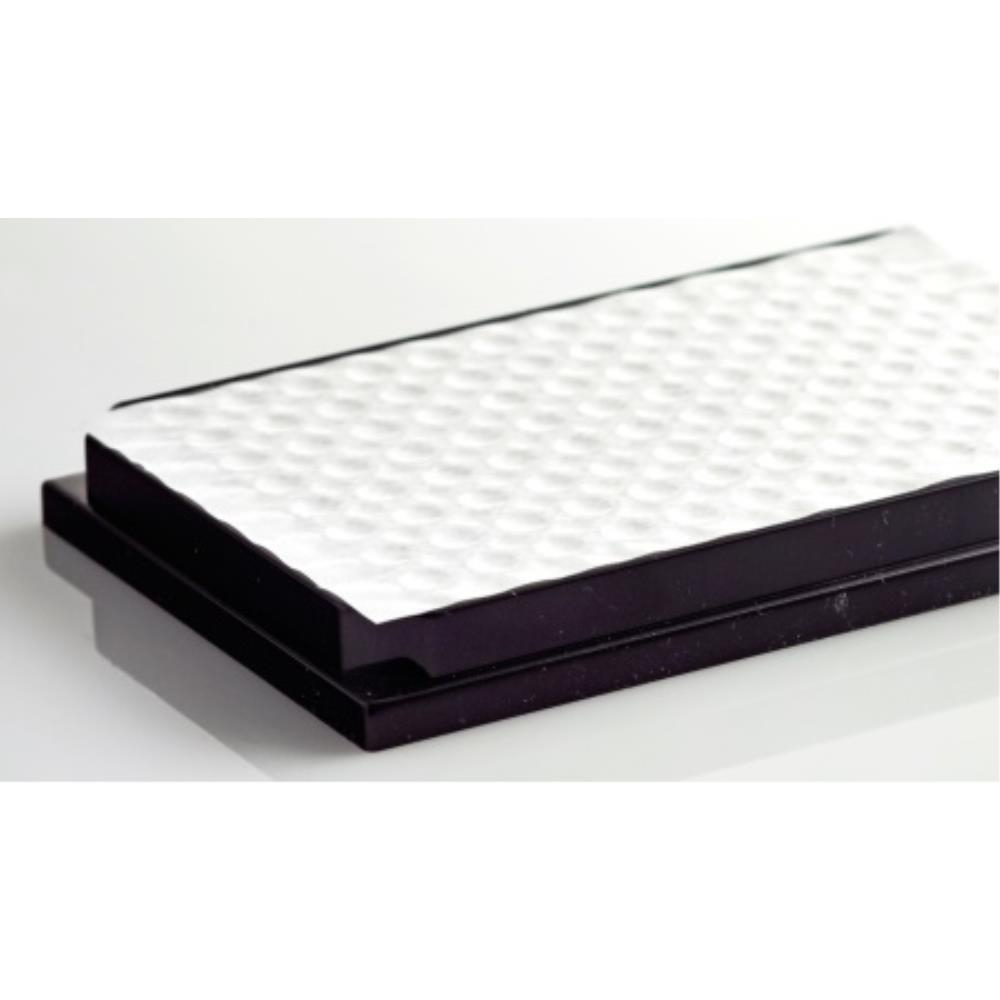

Azenta Life Sciences Gas Permeable Heat Seal Plate Seal Peel-able Pierce-able Sample Roll 5m x 78mm

Stock Code: 1021317
Manufacturer Part No: PCR0886

Descriptions

Heat sealing offers a 100% effective method of plate sealing, for complete seal integrity, as well as being quick and cost effective. The gas permeable heat seal is made from a woven material and is designed for use in cell culture, due to its porous nature. The small pore size (﹤20µm) of this material enables gas exchange, per 24 hours of ﹥20g/m², whilst evaporation is reduced to a minimum. The seal is compatible with polypropylene, polystyrene and cyclic olefin copolymer (COC) plates. It can be removed by peeling, or it can be pierced with a pipette tip manually, using a liquid handling robot or pierce plate (PCR1380).

Gas permeable heat seal can be utilised for effective overnight incubations, during which it demonstrates significant reductions in evaporation compared to lids. It can also be used for insect and seed storage as it enables gas exchange, whilst providing an inert surface with no adhesive to interfere with the well contents. This seal is available as sheets, for use with manual and semi-automated sealers, such as the semi-automated sheet heat sealer (59-2000). Also available in multiple roll formats compatible with specified automated heat sealers, such as the automated roll heat sealer (PCR0920).

Peelable

Pierceable

Seal integrity range: -20 to 80°C

Gas permeability rate: 180m³/m²/day

Moisture vapor transmission rate: 20g/m²/day

Autoclavable (121°C)

Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

Seals polypropylene, polystyrene and cyclic olefin copolymer (COC) plates

Suitable for cell culture, overnight incubations, as well as insect and seed storage

Available as sheet format: 125 x 78mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates, from 12 well to 1536 well, or roll format: available in a variety of roll dimensions, to suit your choice of automatic heat sealing equipment
