Nabertherm Software VCD
Nabertherm Software VCD

Nabertherm Software VCD

Stock Code: 2921889
Manufacturer Part No: FUR1696
Order Now for 21 day delivery
Click Add to Quote for price and delivery
Quantity: - +

Documentation and reproducibility are more and more important for quality assurance. The powerful VCD software represents an optimal solution for single multi furnace systems as well as charg documentation on the basis of Nabertherm controllers. The VCD software is used to record process data of the series 500 and series 400 as well as various further Nabertherm controllers. Up to 400 different heat treatment programs can be stored. The controllers are started and stopped via the software at a PC. The process is documented and archived accordingly. The data display can can be carried-out in a diagram or as data table. Even a transfer of process data to ExcelTM for MS WindowsTM (.csv format *) or the generation of reports in PDF format is possible



Features

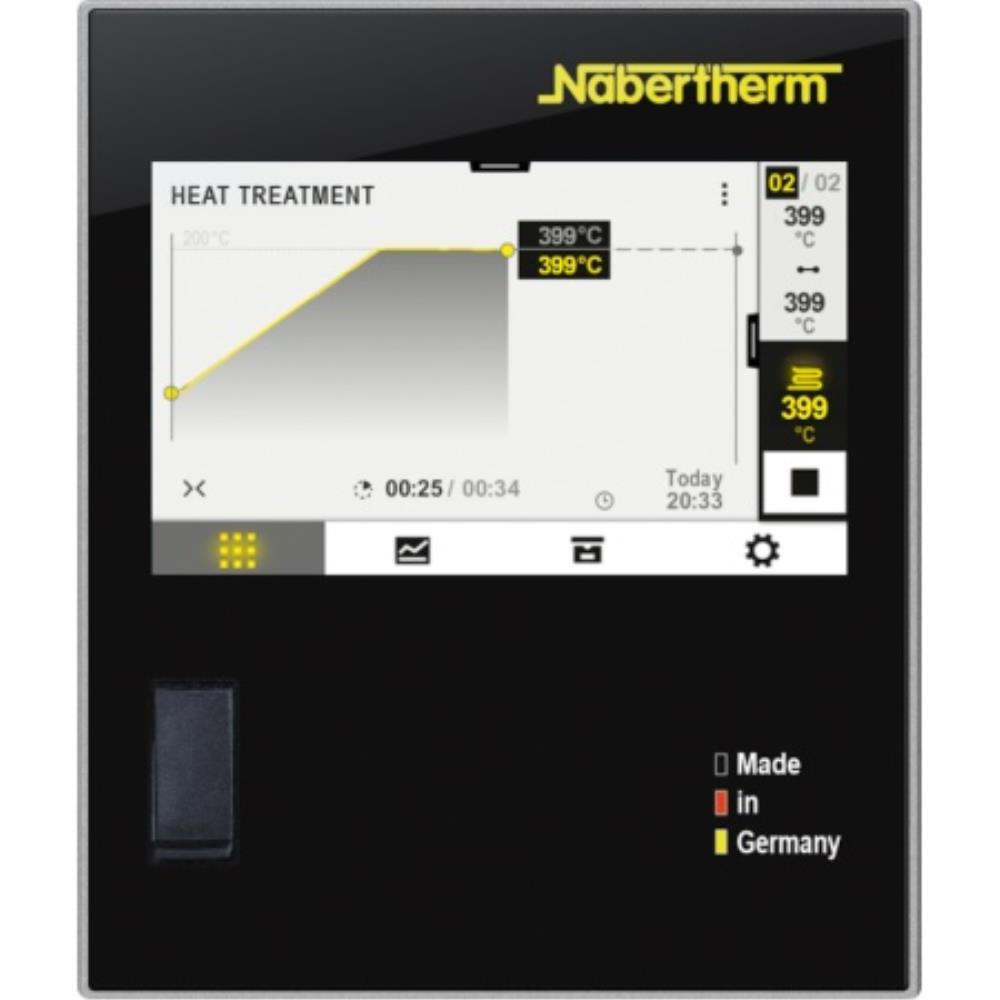

Available for controllers series 500 - B500/B510/C540/C550/ P570/P580, series 400 - B400/B410/C440/C450/P470/P480, Eurotherm 3504 and various further Nabertherm controllers


Suitable for operating systems Microsoft Windows 7/8/10/11


Simple installation


Setting, Archiving and print of programs and graphics


Operation of controllers via PC

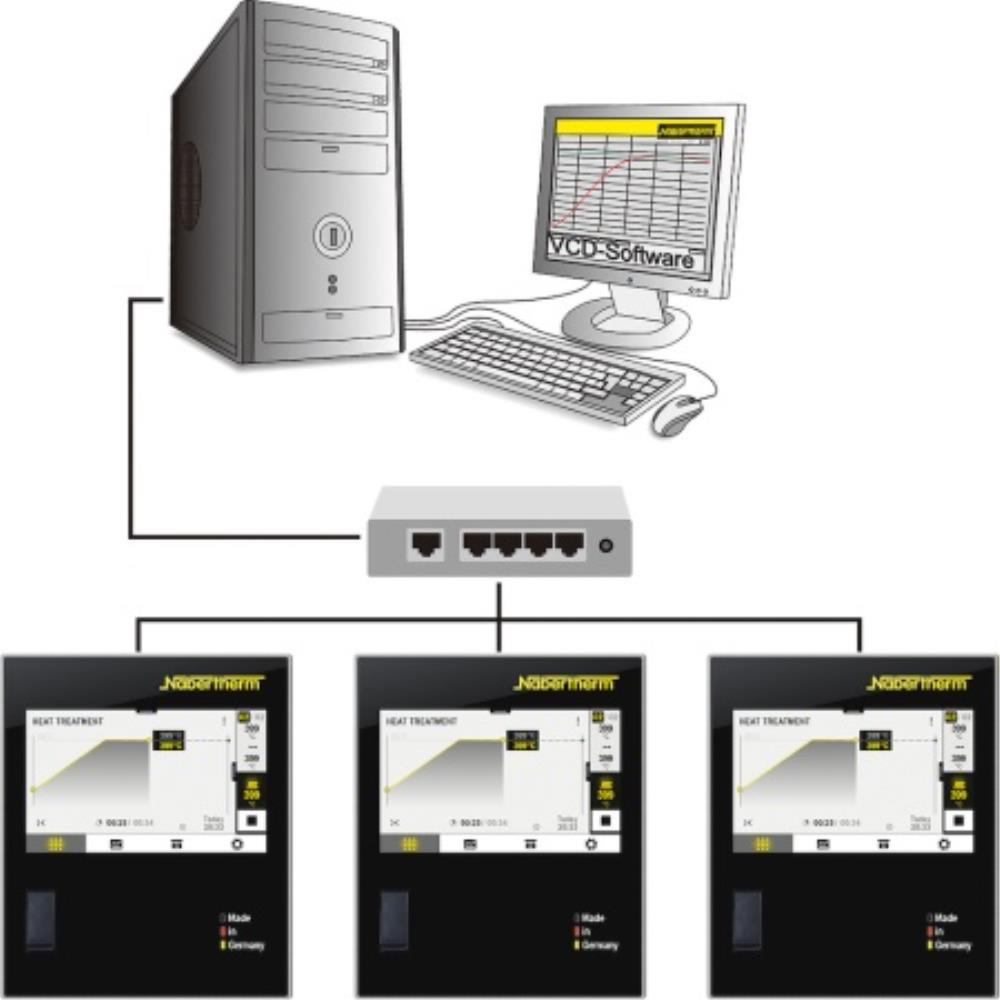

Archiving of process curves from up to 16 furnaces (also multi-zone controlled)


Redundant saving of archives on a server drive


Higher security level due to binary data storage


Free input of charge date with comfortable search function


Possibility to evaluate data, files exportable to ExcelTM for MS WindowsTM


Generation of a PDF-report


24 languages selectable



Extension Package 1:


For display of an additional temperature measuring point, independant of the furnace controls


Connection of an independent thermocouple, type S, N or K with temperature display on a supplied C6D display, e. g. for documentation of charge temperature


Conversion and transmission of measured values to the VCD software


For data evaluation, please see VCD-software features


Display of measured temperature directly on the extension package



Extension Package 2:


For the connection of up to three, six or nine measuring point, independant of the furnace controls


Connection of three thermocouples, tpye K, S, N or B to the included connecting box


Possible extension of up to two or three connecting boxes with up to nine measuring points


Conversion and transmission of measured values to the VCD software


Data evaluation, see VCD features


*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure or reach out for a quote*
