Fistreem Vacuum Oven

Stock Code: 1964558
Manufacturer Part No: VAC1600

Order Now for 3 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

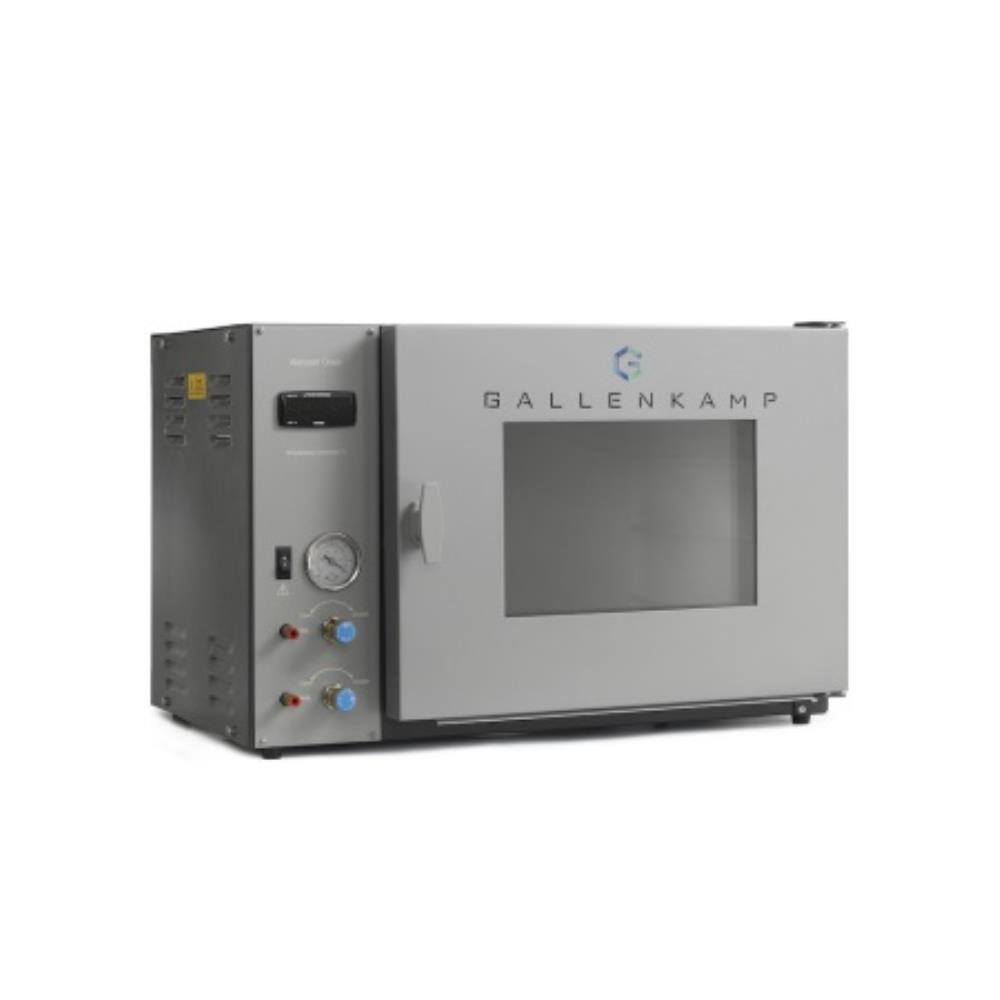

The Fistreem digital vacuum oven features a spacious rectangular chamber with toughened glass viewing window and shatter-resistant safety screen. Temperatures up to 200°C are possible via the PID digital electronic controller. An independent temperature safety circuit protects sensitive samples from overheating. This, a vacuum gauge and two needle valves with tubing connectors are conveniently sited on the front panel. Two shelves and operating manual complete the package.

By using reduced pressure, the Fistreem Vacuum Oven enables heat sensitive materials to be dried at low temperatures. Alternatively, more stable samples may be dried more rapidly at higher temperatures, without fan circulation. This oven is also particularly useful for controlled atmosphere heating (e.g. curing of resins under nitrogen or reduced oxygen conditions). Since the inner chamber is sealed, it may also be suitable for solvent removal work, subject to adequate exhaust and ventilation conditions being provided for the oven and room respectively.

Compact size, large load (31L) capacity

Popular 'gallenkamp' design now upgraded

Digital PID controller for easy and faster

Easy to read vacuum gauge

Highly versatile oven for atmospheric or reduced atmosphere operation

Suitable for solvent removal

Tough steel construction with strong door closure

Toughened glass window with polycarbonate safety screen

Front mounted push on connectors

Outer case is tough, stoved epoxy-polyester painted steel

Vacuum chamber is a robust light alloy casting supplied with two shelves and three shelf positions

Chamber is heated by large area heater panels strapped to its outer surface

Glass fibre insulation maintains safe, low outer case temperatures

Chamber is closed by a 12.5mm thick toughened glass plate sealing onto a silicone rubber gasket, mounted onto the door by 4 spring-loaded pins to ensure an excellent, even seal to the chamber

Door closure is achieved via a strong and positive twist action latch

4mm thick shatter resistant polycarbonate safety shield covers the door window for safety

Electronic digital PID controller allows for easy and faster temperature setting with integral over temperature alarm indication

Reliable, needle type inlet and exhaust valves are fitted near the bottom front corner of the oven for convenient connection to a vacuum pump, vapour trap or exhaust, the serrated nozzles accept flexible vacuum tubing of 10-12mm bore
