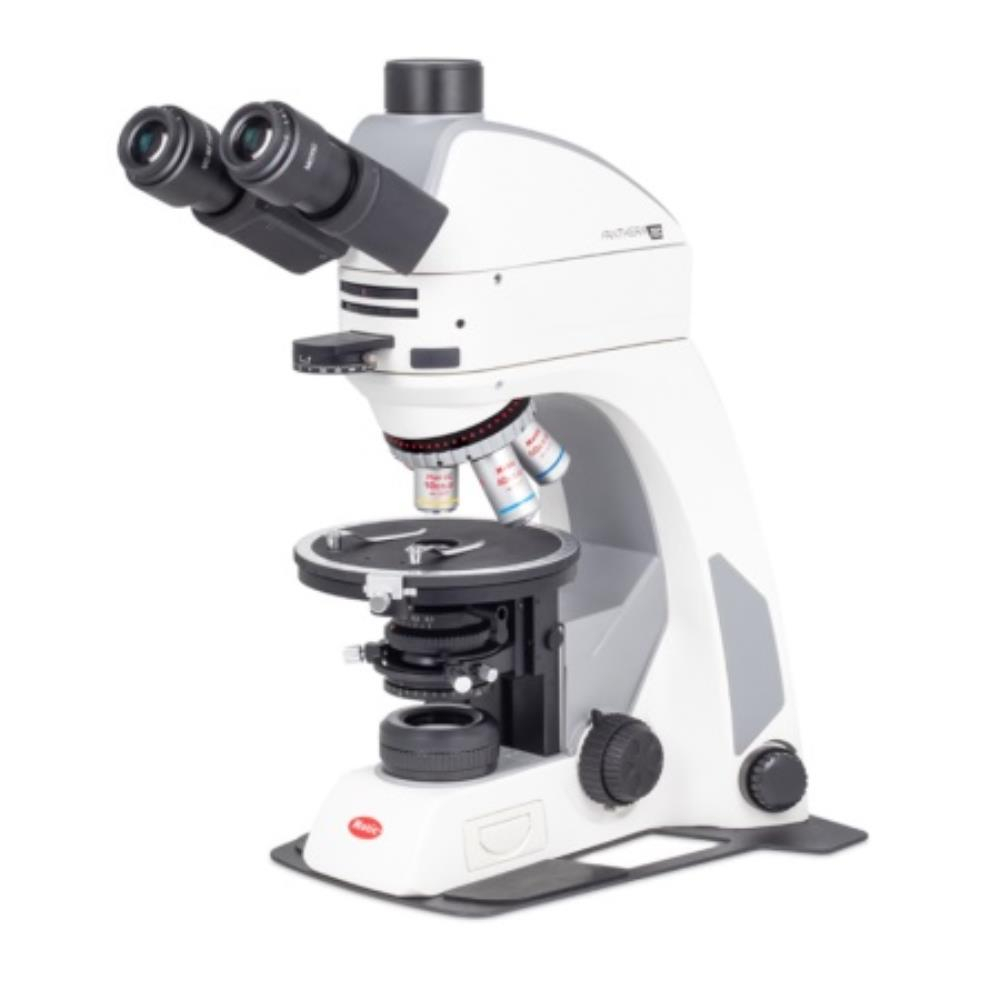

Motic Panthera TEC POL Trinocular Microscope
Motic Panthera TEC POL Trinocular Microscope

Motic Panthera TEC POL Trinocular Microscope

Stock Code: 2911718
Manufacturer Part No: MIC4024
Order Now for 21 day delivery
Click Add to Quote for price and delivery
Quantity: - +

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.


Siedentopf head type 25° inclined


Widefield high eyepoint eyepieces UC-WF10X/22mm


One eyepiece with crosshair reticle and positioning pivot


Intermediate tube with Bertrand lens


Reversed coded quintuple nosepiece with light tracer (intelligent Light Management)

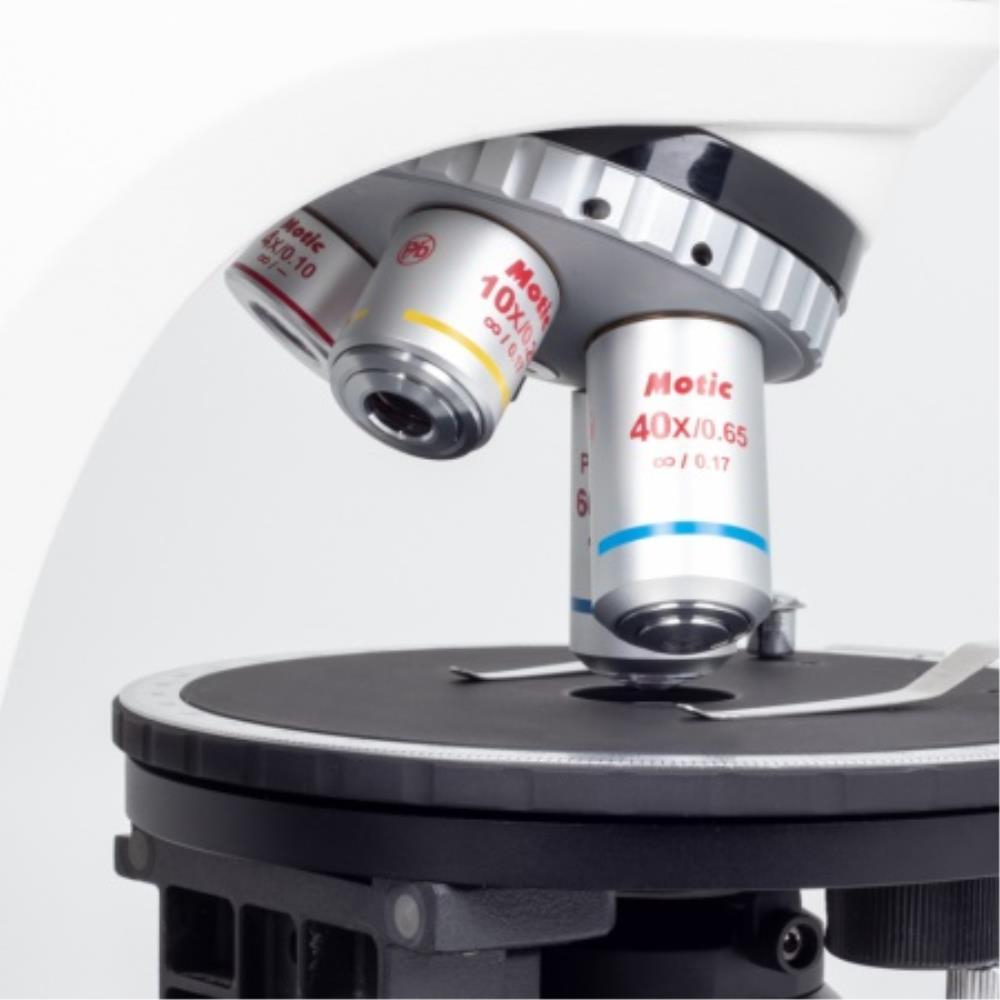

UC plan achromatic (strain free) objectives 4x, 10x, 40x and 60x


360° circular rotatable stage


Focusable and centerable achromat swing-out Abbe condenser N.A. 0.90/0.13 (strain free) and rotatable polariser


Coaxial coarse and fine focusing system with tension adjustment


360° rotatable analyser


Empty insertion plate


Koehler illumination halogen module 30W, optional 3W LED module


USB port for external camera power supply


Motic light tracer: light memory, sleep mode, nosepiece LED light intensity and mode indicator

No detailed specifications are available for this product.
