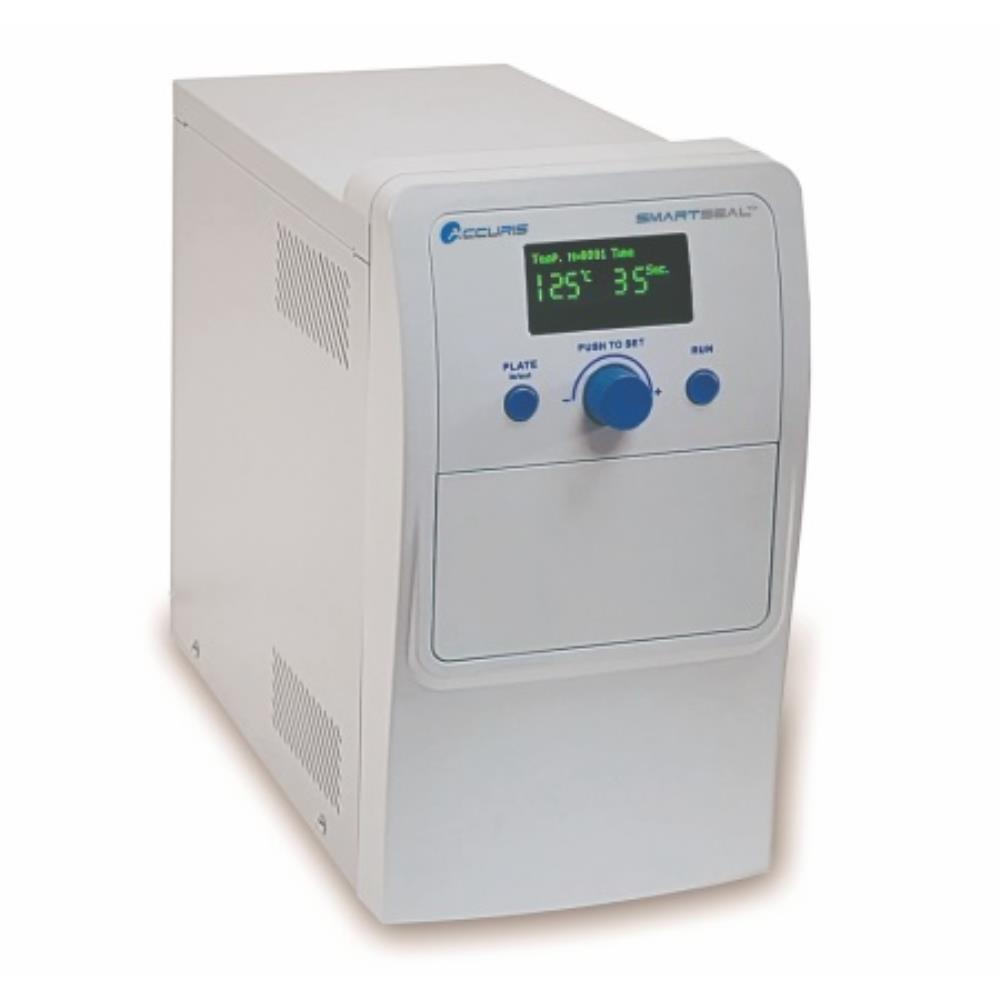

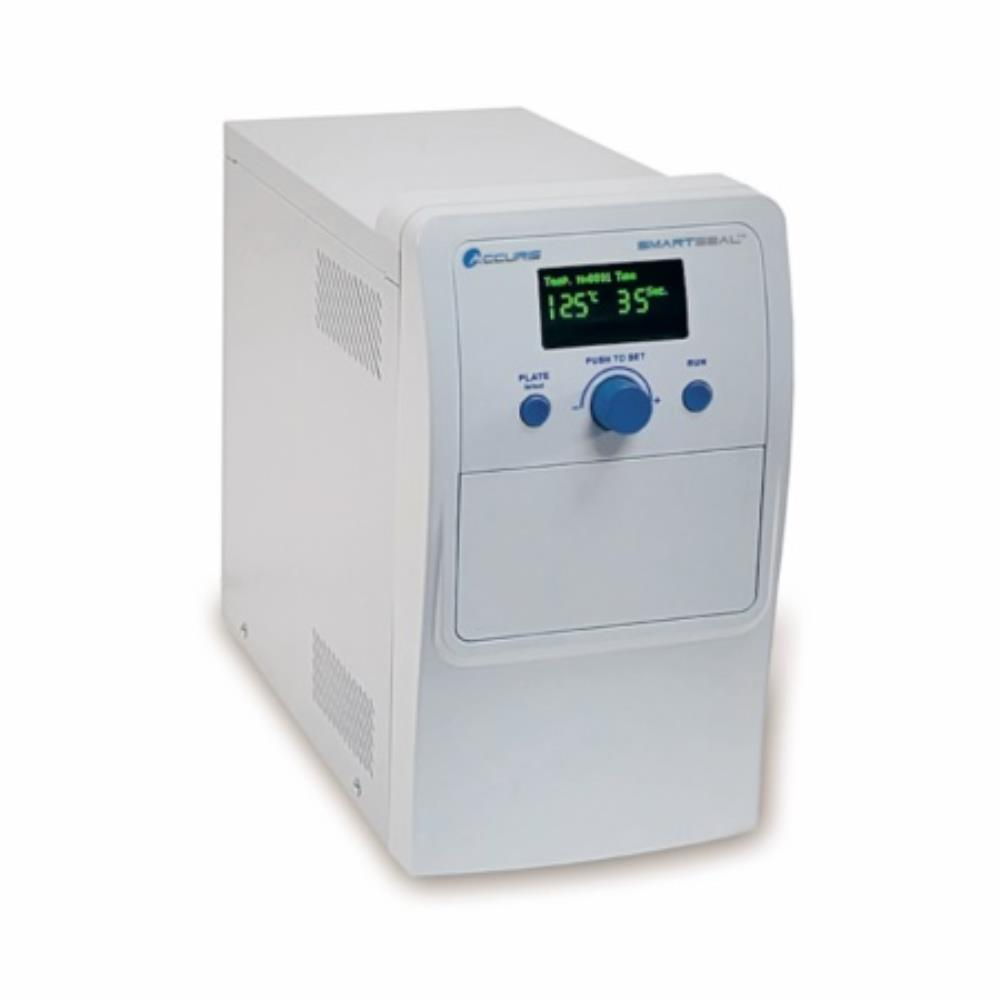

The Accuris SmartSeal™ automated plate sealer provides fast, reproducible sealing of microplates. Unlike manual plate sealing, the SmartSeal™ ensures uniform sealing of all wells and consistency from one plate to the next; eliminating evaporation during processing, and protecting delicate samples during storage. With digital control over all parameters (time, temperature and pressure) the SmartSeal™ is capable of accepting a wide range of plate types and heights. An aluminium block adapter is included (for assay and PCR plates) increasing the compatibility of the instrument to allow for sealing nearly any plate up to 48mm tall. A variety of thermal films can be accommodated, including thin foil films. Simply load the plate and film in the drawer, press the "seal" button and the SmartSeal™ does the rest. The drawer opens with a perfectly sealed plate in just a few seconds. With sealing times as low as 5 seconds, the SmartSeal™ is a time saving solution for labs and production facilities requiring high quality and consistent plate sealing.
Features:
Fast, reproducible sealing of well plates
Adjustable time, temperature and pressure for optimised sealing
User friendly controls, load plate and press run to seal
Accepts a wide range of plate types and heights, including deep well storage plates, assay plates, PCR plates, etc.
Compatible with:
Deep well (storage) plates up to 48mm tall
Assay plates
PCR plates (skirted, semi-skirted and non-skirted)
Polypropylene polystyrene or polyethylene plates
Foil or polymer (transparent) seals
Specifications:
Model: Accuris SmartSeal™
Temp. range: 80 to 200°C
Temp. accuracy: 1°C
Sealing time: 0.5 sec. to 10 sec. (0.1 sec. increments)
Max. plate height: 48mm
Dimensions: 17.8 x 37 x 33cm
Weight: 9.5kg
