SLS Flowgen omniPAGE WAVE Maxi with Casting Base

Stock Code: 3641993
Manufacturer Part No: VS20WAVESYS

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

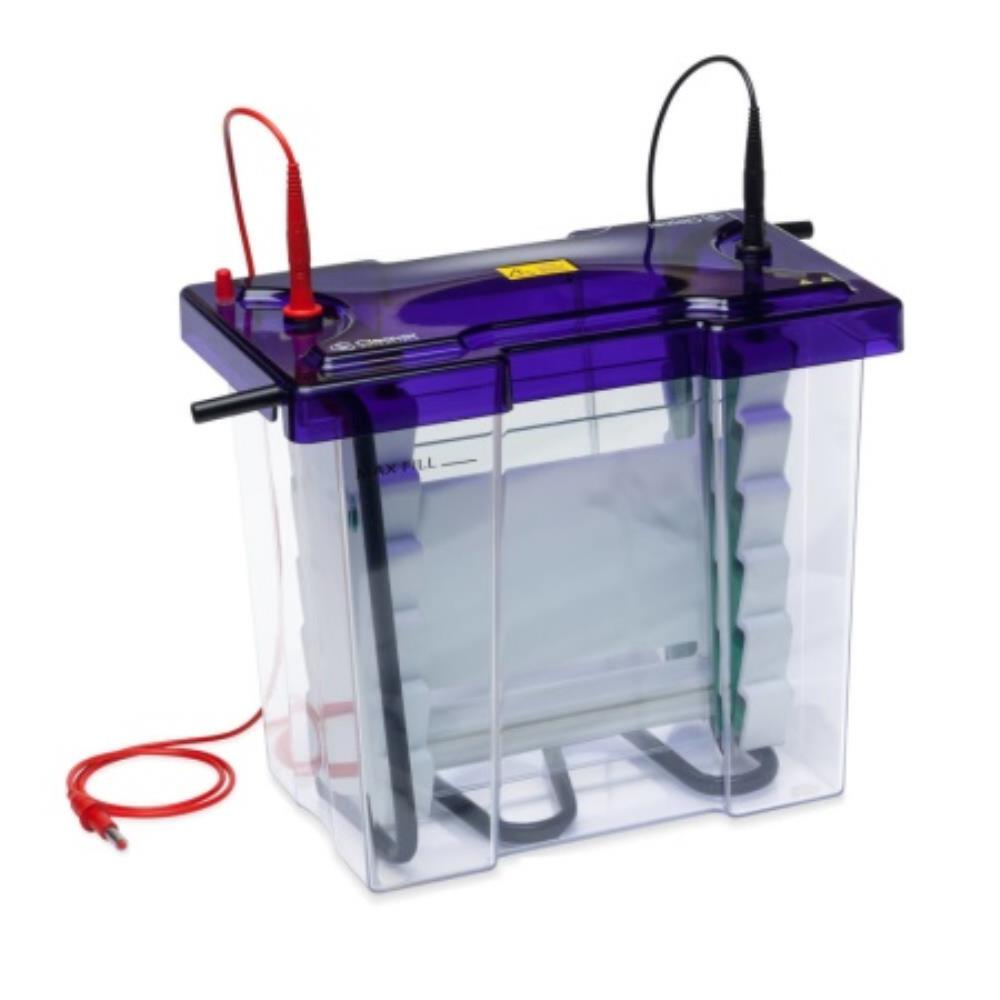

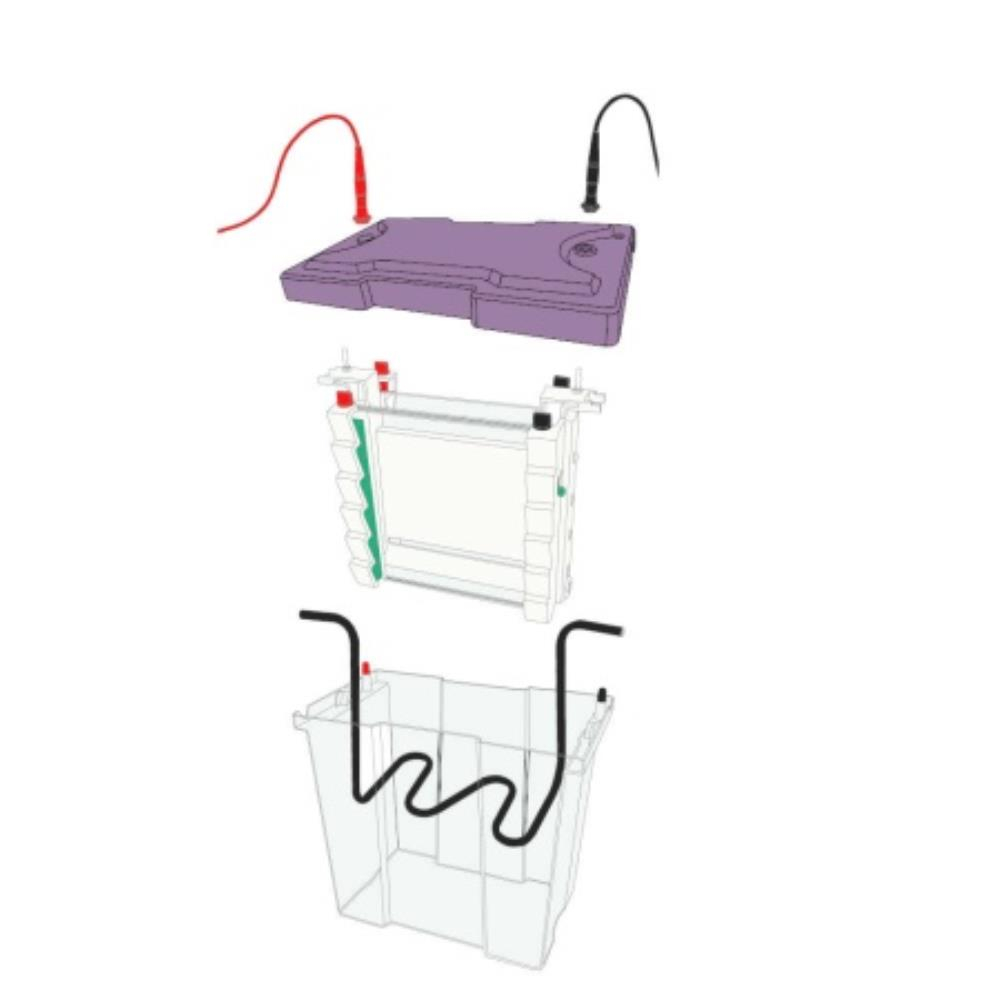

The omniPAGE WAVE Maxi System is for large format vertical gel electrophoresis. Designed to perform a variety of separations, including first and second-dimension SDS-PAGE, native, preparative, gradient and high-resolution nucleic acid electrophoresis, plus capillary tube gel IEF and electroblotting, the VS20 WAVE is one of the most versatile maxi vertical systems available. With innovative vertical screw-clamp technology within the PAGE insert only four screws are now necessary to secure as many 20 x 20cm gels. This gives the VS20 WAVE Maxi the selective advantage of a much faster set up speed compared to competitor products whose traditional clamping configurations require as many as 24 screws to secure just two glass plates. In addition, the WAVEs vertical screw-clamp configuration distributes pressure evenly along the height of the gel rather than in the centre to eliminate plate bowing and gel compression, but still maintains a leak-proof seal during casting; while the ergonomic wave-like design of the PAGE insert aids both handling and set up.

Fewer screws novel vertical screw-clamp technology reduces the number of screws required for set up compared to traditional large-format systems, dramatically reducing assembly time

No top tank assembly - a built-in inner buffer chamber within the PAGE insert allows set up to be completed without inclusion of a top tank or upper buffer chamber

Dimensions: 30 x 18 x 27cm

Plate dimensions: 20 x 20 x 0.4cm

Gel Dimensions 16 x 17.5cm

Capacity: 1 - 4 gels

Maximum sample capacity: 192 samples

Base buffer volume: 1200mL

Maximum buffer volume: 5300mL

Includes casting base
