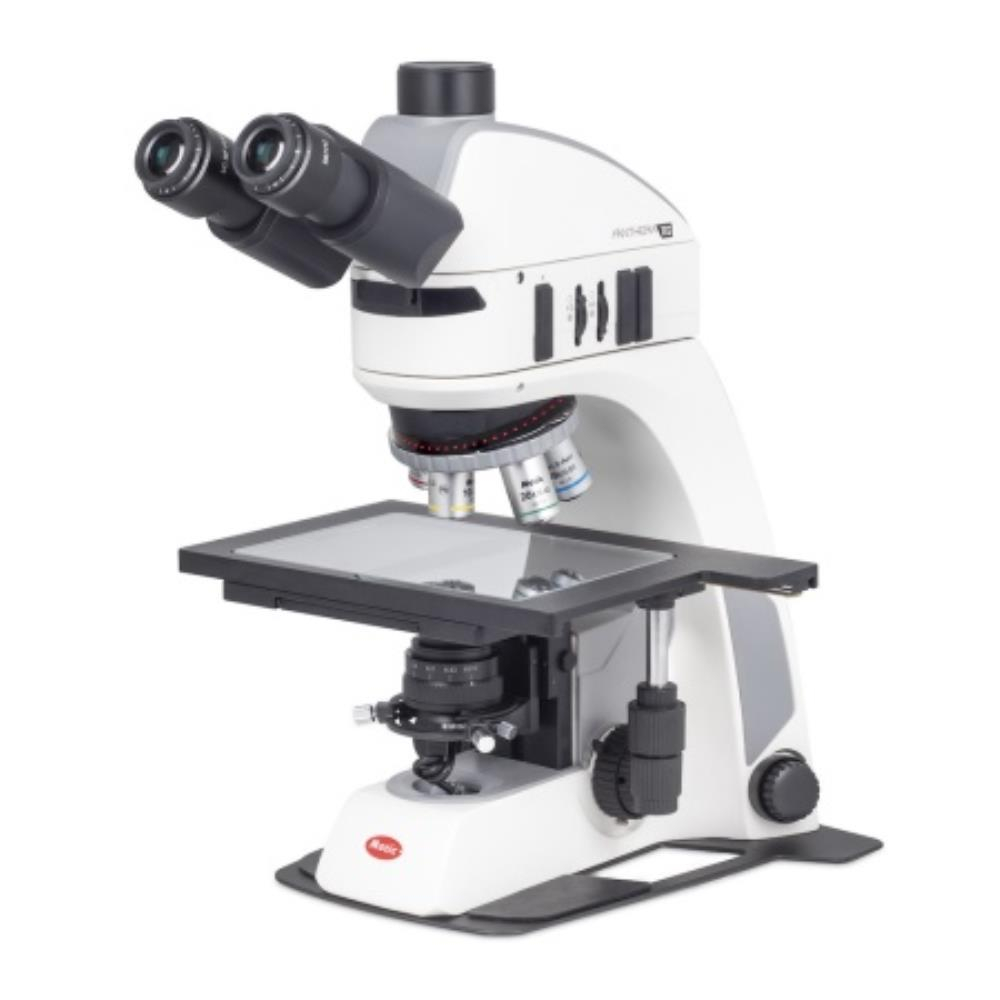

Motic Panthera TEC MAT BF-T (6x4Inch) Microscope
Motic Panthera TEC MAT BF-T (6x4Inch) Microscope

Motic Panthera TEC MAT BF-T (6x4") Microscope

Stock Code: 2911723
Manufacturer Part No: MIC4094
Contact us now for lead time
Click Add to Quote for price and delivery
Quantity: - +

Incident light microscope for material sciences - Panthera TEC MAT BF is a microscope with a set of long distance plan achromatic and semi-apo objectives, working with UC eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.


Siedentopf head type 25° inclined, 360° swivelling (light split 50/50 fixed)


Widefield high eyepoint eyepieces UC-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups


Compact reflected light illuminator for BF with built in 3W LED and LED light indicator

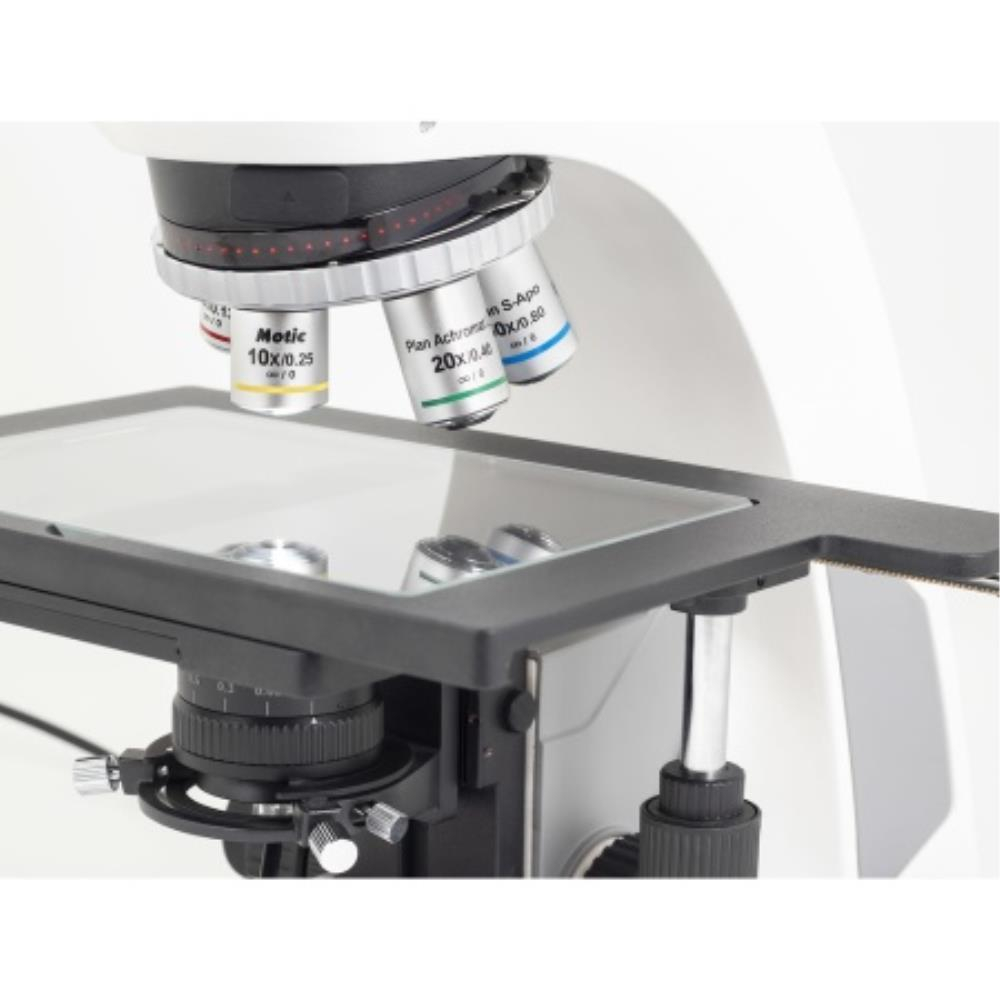

Reversed coded quintuple nosepiece with light tracer (intelligent Light Management)


Plan achromatic objectives LD PL 5x, 10x, 20x


Plan S-apochromatic objective PL S-APO 50x


Coaxial coarse and fine focusing system with tension adjustment


Built in low position mechanical stage 6? x 4? with 300 x 180mm surface and 150 x 100mm travel range


Motic light tracer: light memory, sleep mode, nosepiece LED light intensity and mode indicator


USB port for external camera power supply

No detailed specifications are available for this product.

Click on any of the following links to download the file.
