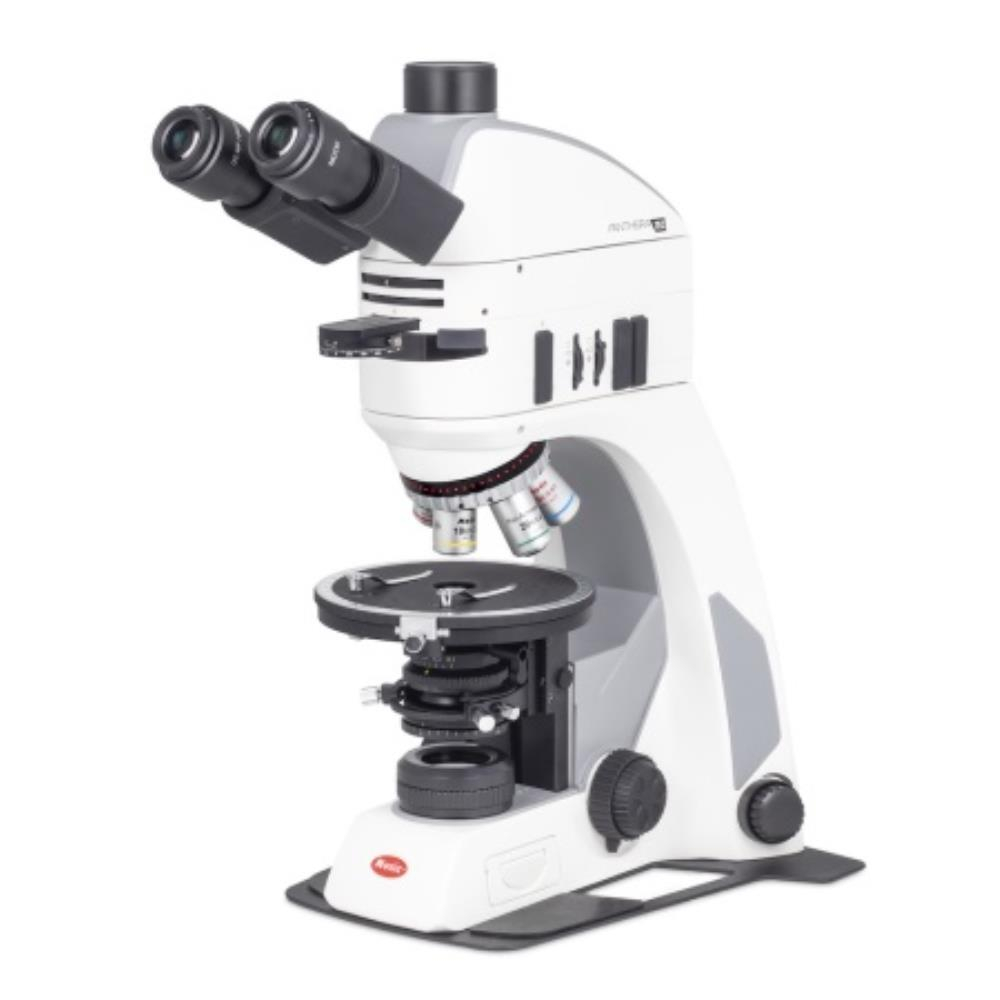

Motic Panthera TEC POL Epi Trinocular Microscope

Stock Code: 2911721
Manufacturer Part No: MIC4036

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Siedentopf head type 25° inclined

Widefield high eyepoint eyepieces UC-WF10X/22mm

One eyepiece with crosshair reticule and positioning pivot

Epi-illuminator LED with rotatable analyser 360°, Bertrand lens, fixed polariser and slot for compensators

Reversed coded quintuple nosepiece with light tracer (intelligent Light Management)

LD plan achromatic and UC plan (strain free) objectives 5x, 10x, 20x and 40x

360° circular rotatable stage

Focusable and centerable achromat swing-out Abbe condenser N.A. 0.90/0.13

Strain-free and rotatable polariser

Coaxial coarse and fine focusing system with tension adjustment

360° rotatable analyser

Incident illumination (LED 3W with integrated field and aperture diaphragms) and transmitted illumination (Koehler LED 3W & quartz halogen 6V/30W with intensity control)

USB port for external camera power supply

Motic light tracer: light memory, sleep mode, nosepiece LED light intensity and mode indicator
