Motic Panthera C2 Microscope Trinocular

Descriptions

A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.

Binocular/trinocular head, Siedentopf type, 360° swivelling

Colour Corrected Infinity Optical System (CCIS®)

25° inclined, 360° swivelling

48-75mm interpupillary distance

Dioptre adjustment on both eyepieces, ±5 dioptre

Widefield UC-WF10X/22mm eyepieces with dioptre adjustment

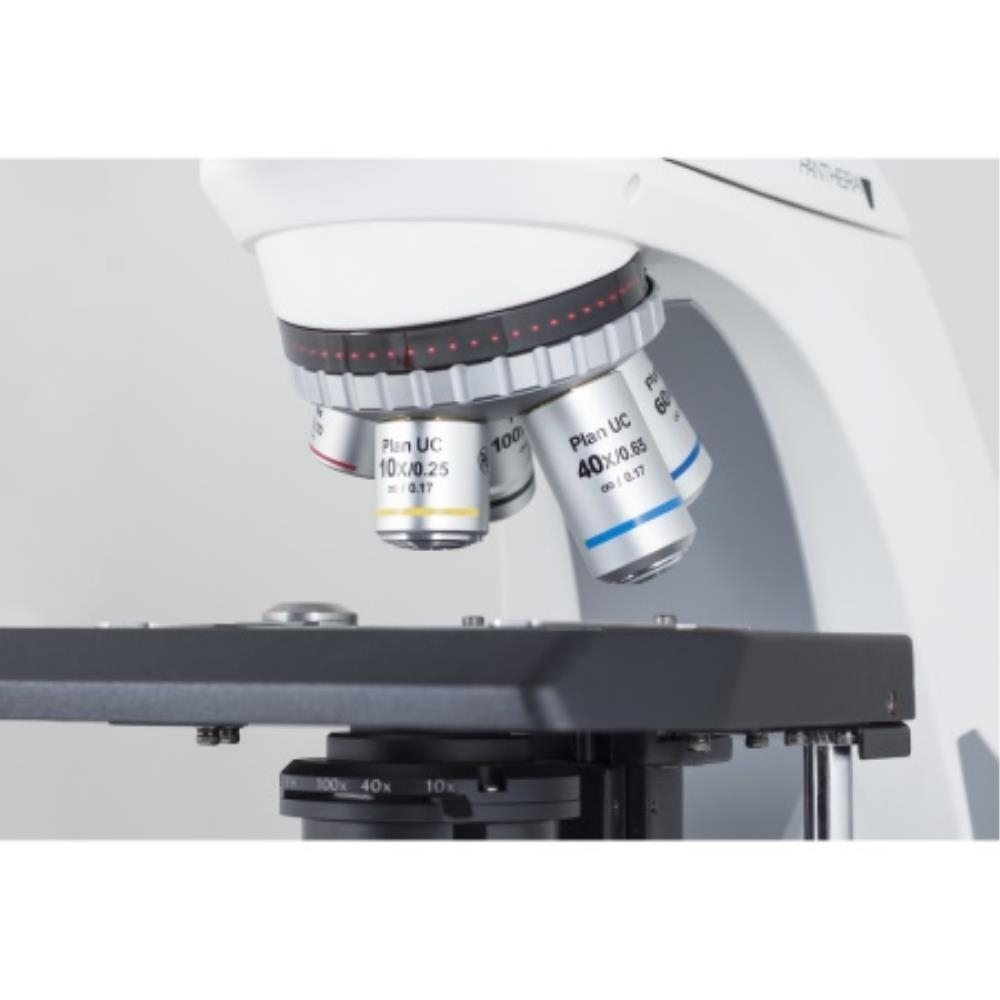

Reversed quintuple nosepiece, coded

CCIS® UC Plan Achromatic (Pb free), DIN

Objectives: 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)

W 4/5″x1/36″ (RMS standard) objective mounting thread

Upright stand

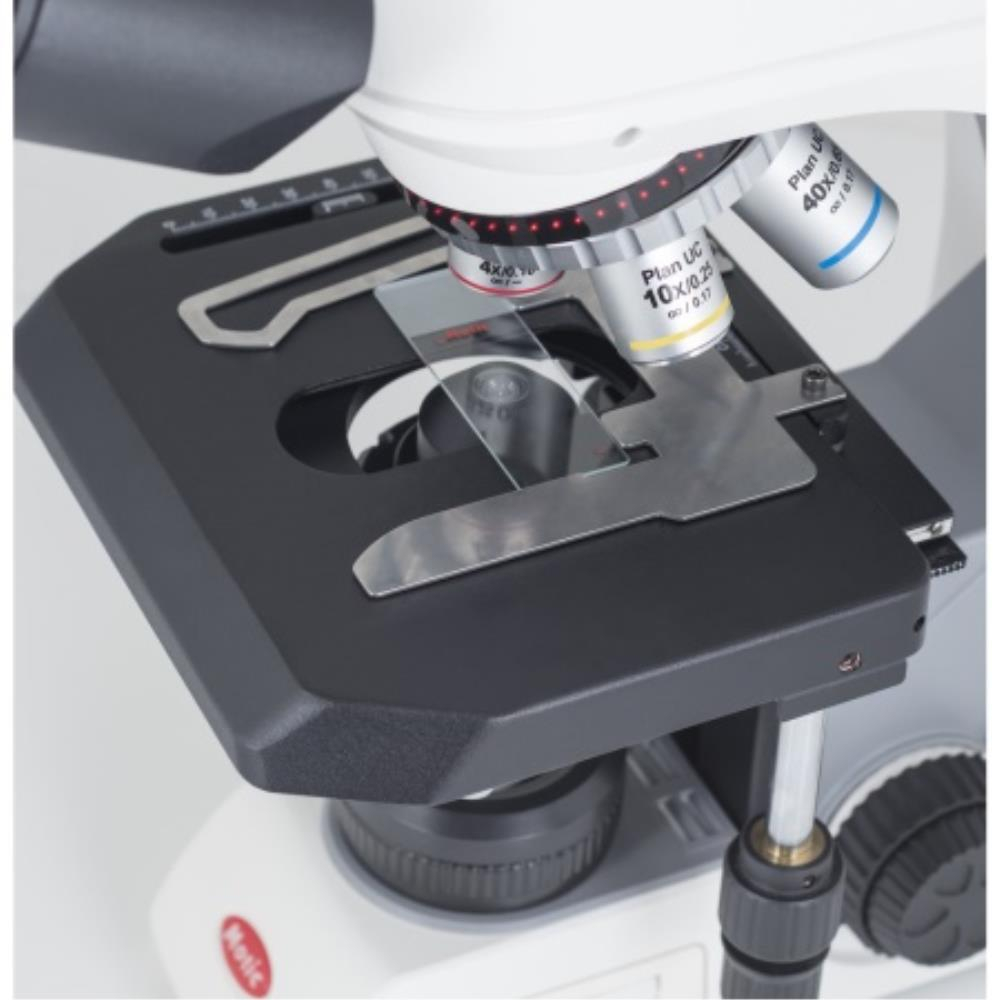

Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
