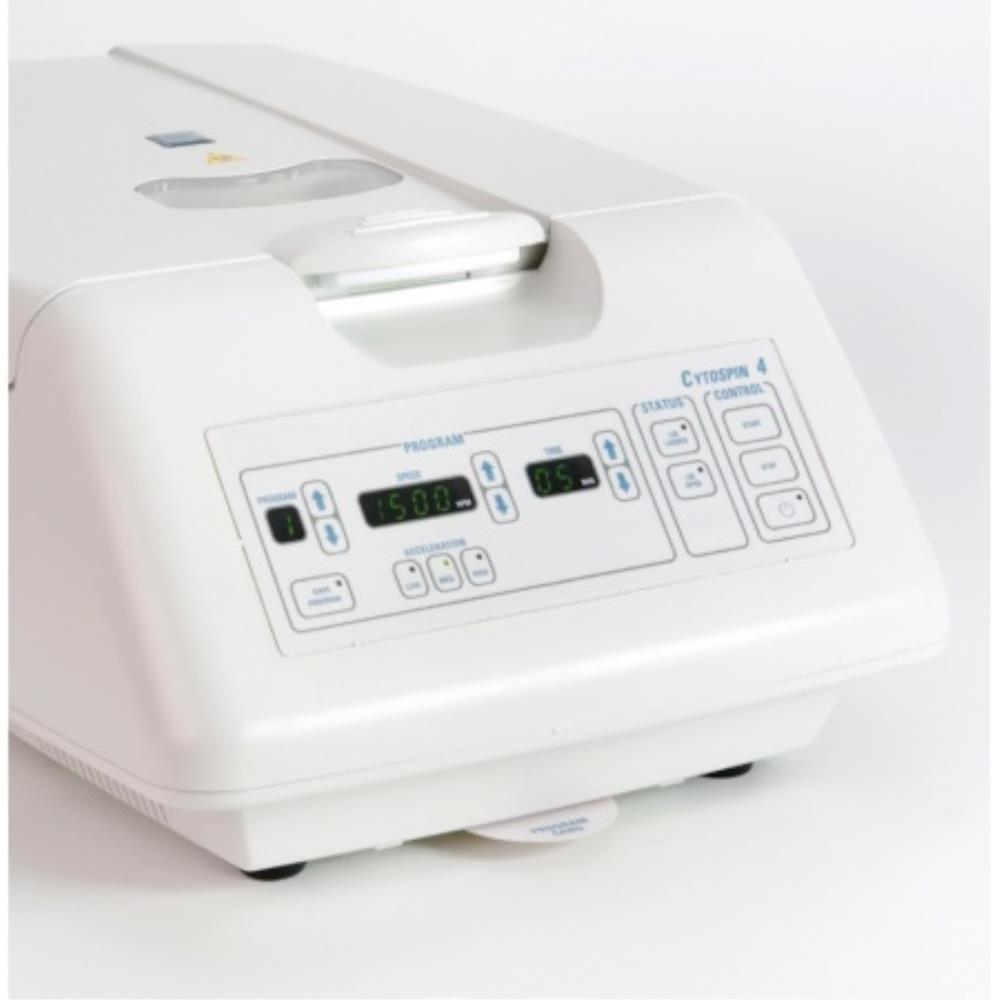

The CytoSpin™ 4 Cytocentrifuge provides economical thin-layer preparations from any liquid matrix, especially hypocellular fluids such as spinal fluid and urine.
Processes 12 specimens at one time
Accepts all protocols from Cytospin 1, 2 and 3
Allows for one-handed opening and closing, only operates only when the lid is locked into position and lid remains locked during rotation
Sealed head can be viewed through the polycarbonate window during operation
Designed for easy disinfection
Meets IEC 61010 safety standards
Sealed head can be loaded inside a microbiological cabinet for safety
Audible alarm sounds when the cytocentrifuge is out of balance or outside the speed tolerance
Specimen safety alarms sound at one-minute intervals to remind users to remove specimens to prevent air drying
Cells deposited onto a clearly defined area of a glass slide, residual fluid is absorbed into the chamber's filter card
In the Load or Stop position, the tilting feature reduces cell loss by preventing residual fluid from coming into contact with the prepared slide
Pull-out program card logs up to nine programs for fast, convenient retrieval
Protected program memory stores up to 23 routines for instant recall
Easy Touch program keypad allows for intuitive programming
Window displays programmed spinning speeds from 200 to 2000RPM and programmed/remaining time
Three acceleration-control buttons allow the operator the flexibility to protect fragile samples
