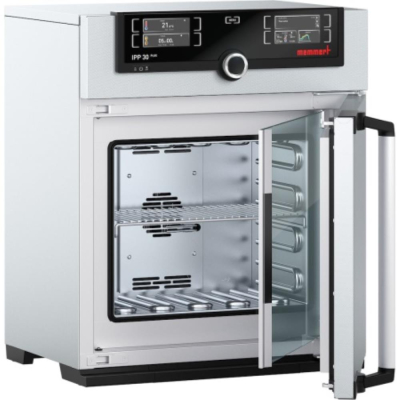

Memmert Peltier-Cooled Incubator TwinDISPLAY

Memmert Peltier-Cooled Incubator TwinDISPLAY

Heating and cooling seamlessly with one system thanks to Peltier technology. In this respect, cooled incubators IPP not only contribute to climate protection, but it also achieves an additional decrease in operating costs of up 90 % compared to compressor technology. This perfect development from the environmentally friendly and energy-saving heating/cooling technology by Memmert convinces by outstanding control precision and extremely small fluctuations.

Setting temperature range 0 °C to +70 °C

Double doors: outside stainless steel, inside glass

Internal data logger with storage capacity of at least 10 years

Works calibration certificate at +10 °C and +37 °C

Warranty is 3 years on parts, 1 year on Labour

SingleDISPLAY:

ControlCOCKPIT with one high-resolution TFT colour touchdisplay

Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, programme time, time zones, daylight-saving time

One temperature sensor Pt100 DIN class A in a 4-wire circuit

AtmoCONTROL software for reading out, managing and organizing the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand)

Ethernet interface for reading out protocol log and for online logging

Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12880

TwinDISPLAY:

ControlCOCKPIT with two high-resolution TFT colour touchdisplays

Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time

Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error

HeatBALANCE function for application specific adjustment of heat output distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 %

AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port

Intuitive programming and archiving of ramps and program sequences

Synchronous visualisation of the created program sequence during programming

Application-specific repeat functions (loops) can be inserted within a temperature control program in any place

Simple creation of repeating weekly programs

ControlCOCKPIT with USB port for uploading programs, reading out protocol logs, activating the User-ID function

Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)

Ethernet interface for reading out protocol log, uploading programs and for online logging

Multiple over temperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.1 or 2) and mechanical temperature limiter TB (protection class 1) acc. to DIN 12880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual

·MIN / MAX values for over/under temperature alarm

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Display Price Quantity
2776899 Memmert IP30plus Peltier-Cooled Incubator TwinDISPLAY 32L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2776900 Memmert IPP55plus Peltier-Cooled Incubator TwinDISPLAY 53L TwinDISPLAY
Click Add to Quote for price and delivery
-
+
2776901 Memmert Peltier cooled incubator IPP55plus TwinDISPLAY 0 C to 70 C with 1 grid 53L -
Click Add to Quote for price and delivery
-
+
